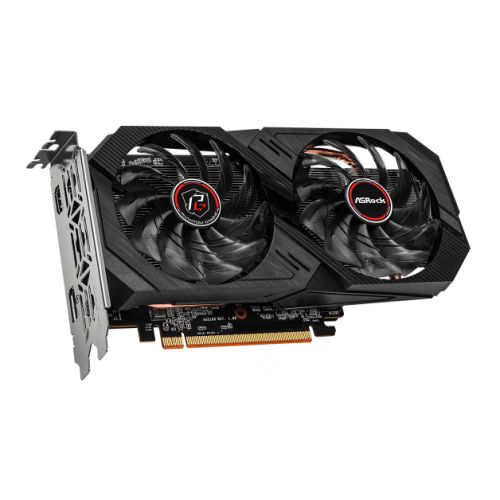

Asrock RX6500 XT Phantom Gaming D 4GB OC, 4GB DDR6, PCIe4, HDMI, DP, 2820MHz Clock, Overclocked
AMD Radeon RX 6500 XT Phantom Gaming D 4GB OC
- Boost Clock: Up to 2820 MHz / 18 Gbps
- Game Clock: Up to 2650 MHz / 18 Gbps
- Base Clock: 2365 MHz / 18 Gbps
- 6nm AMD Radeon™ RX 6500 XT
- 4GB GDDR6
- AMD RDNA™ 2 Architecture
- DirectX® 12 Ultimate
- PCI® Express 4.0 Support
- 1 x 8-pin Power Connector
- 1 x DisplayPort™ 1.4 with DSC
- 1 x HDMI™ 2.1 VRR
- Dual Fan Design
- Stylish Metal Backplate
- Striped Axial Fan
- 0dB Silent Cooling
- Super Alloy Graphics Card
- ASRock Tweak 2.0
- AMD FidelityFX™ Super Resolution
- Hardware Raytracing
Two fans that provide strong cooling performance and make your gaming rig stay cool. It’s optimized for delivering excellent gaming experience with stylish and streamlined design.
Designed For Enhanced Airflow.
ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.
With the Phantom Gaming look, the stylish metal backplate on the Phantom Gaming graphics cards makes it more fancy in visual and solid in construction. Otherwise, the thermal pad at the backside also helps to enhance the thermal efficiency.
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
Better Heat Transfer.
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.
Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
Premium 90A Power Choke
Compared to traditional chokes, ASRock’s premium 90A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.
2oz Copper PCB
Matte Black PCB
High Density Glass Fabric PCB
Pro and Easy-to-Use Tuning Utility.
Provides the smart fan speed control and instant performance tweaking.
Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.
This graphics card features PCI® Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI® Express 3.0. Get ready for the next generation of PC gaming.
AMD Radeon™ RX 6500 XT graphics cards deliver serious 1080p gaming and impressive frame rates. The power of AMD RDNA™ 2 architecture is unleashed with up to 16 powerful graphics compute units, coupled with all ultra-high bandwidth AMD Infinity Cache™, and up to 4GB of dedicated GDDR6 memory.
With immersive gaming technologies and support for DirectX® 12 Ultimate, AMD Radeon™ RX 6500 XT graphics cards draw you into the action. Experience gaming with realistic lighting, shadows, and reflections along with rich detail, thanks to DirectX® Raytracing (DXR), variable rate shading (VRS), and AMD FidelityFX™ technology features, optimized for AMD RDNA™ 2 architecture.
For Your Games
AMD FidelityFX™ Super Resolution (FSR) technology boosts your frame rates by 2.4X on average across select FidelityFX Super Resolution supported games2 with high-quality, high-resolution gaming experiences delivered by AMD Radeon™ RX 6000 Series graphics cards. Optimize your gaming experience between four presets, ranging from best visual fidelity to maximum performance.
For The Best Gaming OS
AMD Radeon™ graphics with Windows 11 enables the ultimate gaming experience through superior graphics, amazing performance, optimized security features. With support for DirectX® 12 Ultimate, Auto HDR, AMD Radeon graphics, and Radeon™ software all stand ready to supercharge your gaming experience with Windows 11.
Description
Specification
- Chipset Manufacturer: AMD
- Interface: PCI Express 4.0
- Graphics Chipset: AMD RX 6500 XT
- Memory Size: 4GB
- Memory Type: DDR6
- Memory Interface: 64-bit
-
Core Clock: Boost Clock: Up to 2820 MHz
Game Clock: Up to 2650 MHz
Base Clock: 2365 MHz - Memory Clock: 18 Gbps
- CUDA Cores / Stream Processors: 1024 Stream Processors
-
Outputs: 1 x HDMI 2.1
1 x DisplayPort 1.4a HBR3 / DSC - HDCP Support: Yes
- Resolution: Digital Max Resolution: 7680 x 4320
- DirectX Support: DirectX12 Ultimate
- Max Display Support: 2
-
Cooling: Dual Fan Design
Striped Axial Fan
0dB Silent Cooling - PSU Requirements: 400W or greater recommended
- Connectors Required: 1 x 8-pin PCIe power
- Additional Features: See Overview
- Dimensions: 240 x 129 x 42 mm
- Accessories: 1 x Quick Installation Guide
- Package Type: Retail
- HDMI: Yes (HDMI)
- DisplayPort: Yes (DisplayPort)
- Package Weight: 0.8000 kg
- Warranty: 2 Year Replacement Warranty
